Tools for Tracking Verified Requirements

Inferno was designed to support conformance testing for FHIR systems against standards and regulations. The Inferno DSL supports associating discrete requirements with suites, test groups, and tests. This allows

• Developers to track how well test suites cover a specification’s requirements.
• Testers to see the requirements that drove the test design within the user interface.

Process Overview

To use Inferno’s requirements tooling, test kit developers will need to

1. Extract discrete specification requirements
2. Load requirements
3. Declare suite requirements
4. Mark requirements as verified by a test, group, or suite

Once these steps are done, then

• Testers can see requirements in the user interface, and
• Developers can generate a requirements coverage report for each suite.

Requirements CLI Command Summary

The following commands are avilable in the Inferno CLI for use in managing requirements assets:

Extract Discrete Requirements

Inferno’s requirements tooling allows test kit developers to link discrete, atomic requirements to suites and the tests that verify them. However, FHIR IGs and related regulations define most of their requirements in narrative form without a clear way to reference the individual, atomic requirements that they place on conformant systems. To use the Inferno requirements tooling, test developers must first extract atomic requirements from the target IG’s narrative sections and give each requirement an identifier so that they can be directly referenced.

Inferno defines a template spreadsheet into which requirements can be extracted for use within Inferno. The “Info” sheet of the template includes details on what each column on the “Requirements” sheet means and includes some best practices for filling it out with discrete requirements from a FHIR IG.

Load Requirements

For requirements to be available to test suites, they must be loaded by the test kit. When a test kit starts, it will load requirements from two locaations:

• csv files found in the /lib/[test kit source]/requirements folder of the test kit, and
• csv files contained in any Inferno test kit gems referenced by the test kit’s gemspec.

Loaded requirements must be unique so each requirement can only be defined in a single test kit.

Generating the requirements csv file

Inferno includes a CLI command that generates the requirements csv file for a test kit by combining requirement lists from spreadsheets found in the /lib/[test kit source]/requirements folder. It requires that each spreadsheet’s filename ends with .xlsx and that each is built off the Inferno Requirements Template with requirements on the Requirements sheet and the requirement set id present in the Id field of the Metadata sheet. To generate the file from the test kit root directory, run bundle exec inferno requirements export_csv.

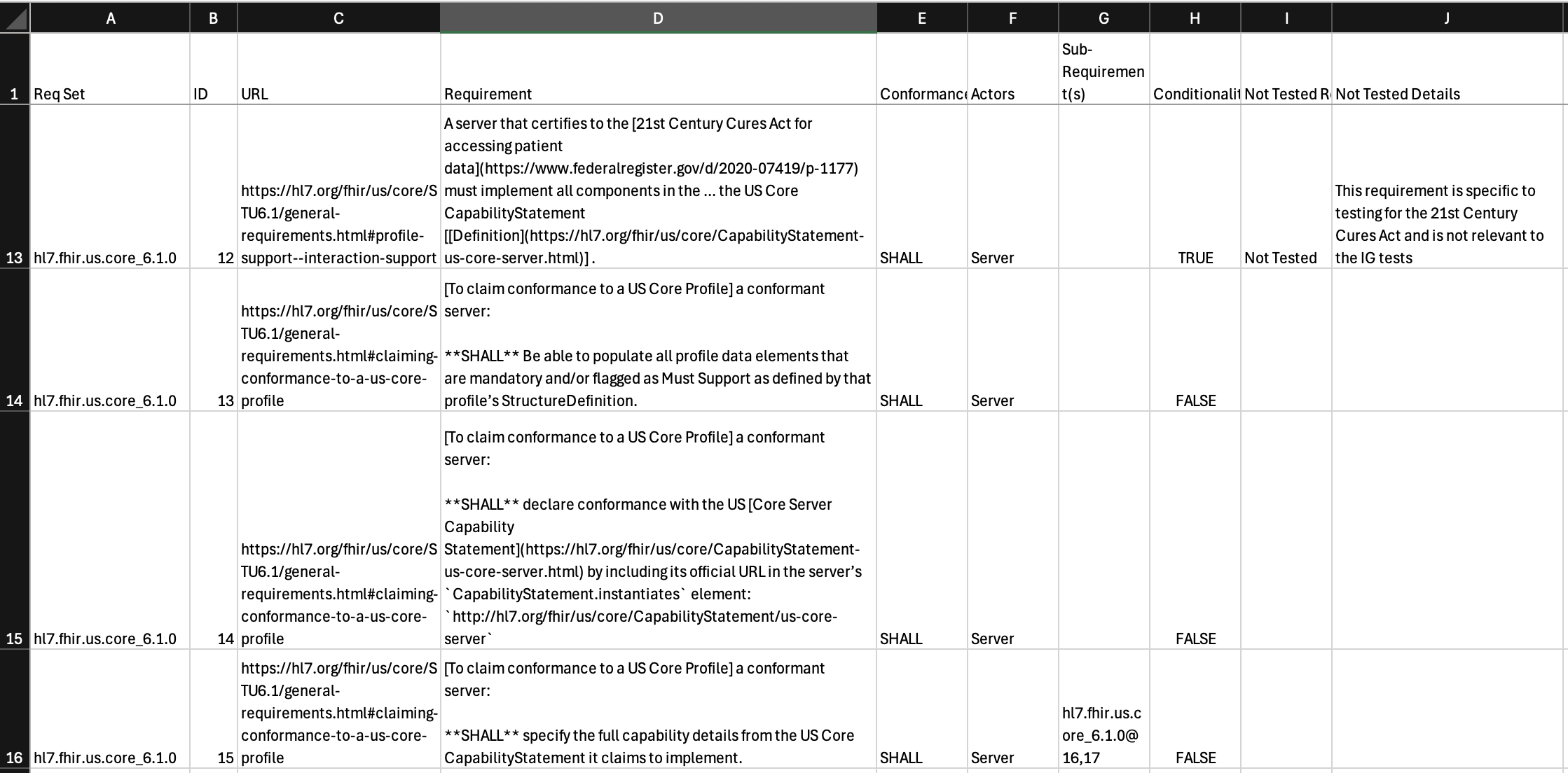

Requirements csv file details

Inferno’s requirements export_csv CLI command generates a csv file called [test kit name]_requirements.csv in the requirements directory. The file will contain a row for each requirement found in spreadsheets within the requirements directory, each with the following columns, which are a subset of those found in the Inferno Requirements Template:

• Req Set: the requirement set id.
• ID: the requirement id within the set.
• URL: a link to the requirement source.
• Requirement: the requirement text, formatted as markdown.
• Conformance: the discrete conformance verb for the requirement.
• Actors: comma-delimited list of actors that must meet this requirement.
• Sub-Requirement(s) (optional): requirements referenced by this requirement which must themselves be met for a system to meet this requirement.
• Conditionality (optional): boolean value that will be true if the requirement must be met only in certain circumstances. Note that details on when the requirement needs to be met, which can be recorded in the template spreadsheet’s Conditionality Description column, are not included in the csv file.
• Not Tested Reason (optional): may include an indicator that this requirement is not expected to be verified by a suite, e.g., because it cannot be verified.
• Not Tested Details (optional): details on why this requirement is not expected to be tested.

Keeping the requirements csv file in sync

To help keep the requirements csv file in sync with the spreadsheet, test kit repositories can use the bundle exec inferno requirements check command in their CI/CD pipeline to check that the files remain in sync each time the repository is updated (github example for the us-core test kit).

Declare Suite Requirements

Suites can declare the requirements that the systems it tests are responsible for meeting. The requirement_sets property takes a list of hashes each representing a RequirementSet object. Each RequirementSet identifies a list of requirements from a single requirement set. Taken together, these lists constitute the suite’s requirements.

Each requirement_sets hash entry must include:

• identifier: the requirement set identifier as a string.
• title: a human-readable title for this requirement set, used for display only.

Filtering requirement sets

By default, the requirement list for a requirement_sets entry will include all requirements from the indicated set. Additional properties allow developers to scope which requirements the entry’s list contains:

• actor: if present, only requirements from the referenced set placed on the indicated actor are included.
• requirements: if present, can either be
  • a comma-delimited string listing the specific requirement Ids from the set to be included, or
  • the string 'referenced', specifying that the entry’s list includes all requirements from the indicated set that are referenced through the Sub-requirement(s) column of another included requirement.

Tying requirement sets to suite options

Sometimes, certain requirements are only part of the suite’s requirements when specific suite options are selected. Developers can indicate this using:

• suite_options: if present, must be formatted as a hash of suite option name-value pairs indicating which suite options must be chosen for the list of requirements represented by this entry to be included.

Requirement sets example

For example, the following suite definition uses the options described above to include the following requirements in the suite’s declared requirements list:

• All requirements from the example-regulation set,
• “Provider” actor requirements 2, and 4-5 from the example-ig_v1 set, and
• When the 2.0.0 option is selected for the ig_version suite option, all “Provider” actor requirements from the example-ig_v2 set.

class SuiteWithLinkedRequirements < Inferno::Test
  id :suite_with_linked_requirements
  title 'Suite with linked requirements'
  requirement_sets(
    {
      identifier: 'example-regulation',
      title: 'Example Regulation',
    },
    {
      identifier: 'example-ig_v1',
      title: 'Example Implementation Guide Version 1',
      actor: 'Provider',
      requirements: '2, 4-5' # Only include these specific requirements
    },
    {
      identifier: 'example-ig_v2',
      title: 'Example Implementation Guide Version 2',
      actor: 'Provider' # Only include requirements for the 'Provider' actor
      suite_options: {      # Only include these requirements if the ig
        ig_version: '2.0.0' # version 2.0.0 suite option is selected
      }
    }
  )
end

requirement_sets in the API docs

Mark Requirements as Verified

Requirements can be marked as verified at any level of a test suite’s structure (suite, group, or test) using the verifies_requirements property. verifies_requirements takes a list of strings each containing a requirement reference of the form [requirement set id]@[requirement id]. For example, the following test definition indicates that it verifies 3 requirements from two different sets (requirements 1 and 2 from example-regulation and requirement 2 from example-ig_v1):

class TestWithVerifiedRequirements < Inferno::Test
  id :test_with_verified_requirements
  title 'Test with verified requirements'
  verifies_requirements 'example-regulation@1', 'example-regulation@2', 'example-ig_v1@2'

  run do
    # test logic that verifies that the system meets the listed requirements
  end
end

verifies_requirements in the API docs

Generate Suite Requirements Coverage Reports

The Inferno CLI includes a command requirements coverage that can be used to create a requirements coverage report for each suite. To determine which requirements are verified for a suite, the command walks the suite’s test tree and uses the verifies_requirements property at each position to determine which requirements are verified. If Inferno identifies any requirements that are verified but that are not declared as part of the suite’s requirements using the requirement_sets property, the command will succeed but will display a warning.

Report format

The requirements coverage CLI command generates a csv file for each suite, named [suite id]_requirements_coverage.csv in the requirements/generated directory. The coverage report includes a row for each of the suite’s requirments. It includes all columns from the requirements csv generated by the requirements export_csv CLI command (see the Requirements csv file details section for details) except for the Sub-requirement(s) column. In addition, it contains two additional columns indicating the short (number-based) and full ids for the tests and groups that verify the requirement in that row.

Keeping the coverage report csv files in sync

To help keep the generated csv report files in sync with the requirements csv and the verifies_requirements annotations in the suite, test kit repositories can use the bundle exec inferno requirements check_coverage command in their CI/CD pipeline to check that the files remain in sync each time the repository is updated (github example for the us-core test kit). Note that warnings generated by this command do not cause therequirements check_coverage CLI command to return an error code.

Requirements Challenge Areas

Extracting and tracking requirements for FHIR IGs can be difficult and time-consuming, particularly when multiple versions of an IG are involved. The Inferno requirements tools are stable and usable as is, but the Inferno team has found the following aspects to be difficult to use in their current form:

• Conditionality: While the Inferno requirements format includes space for capturing conditionality, in practice it is difficult to collect and define. The tooling does not currently use this information in any way, so it is safe to omit this detail.
• Sub-requirements: FHIR IGs often contain references to other IGs or parts of them. Turning these references into formal requirements lists requires careful interpretation. For example, when another IG’s CapabilityStatement is referenced, that could be interpreted to either include just the structured API requirements defined in the CapabilityStatement itself, or to also include other related requirements from the IG’s narrative sections.
• Decisions not to test a requirement: Currently, requirements can be marked as not tested at a global level, e.g., because they are malformed in some way. However, they cannot be marked as explicitly out of scope for a specific test kit.
